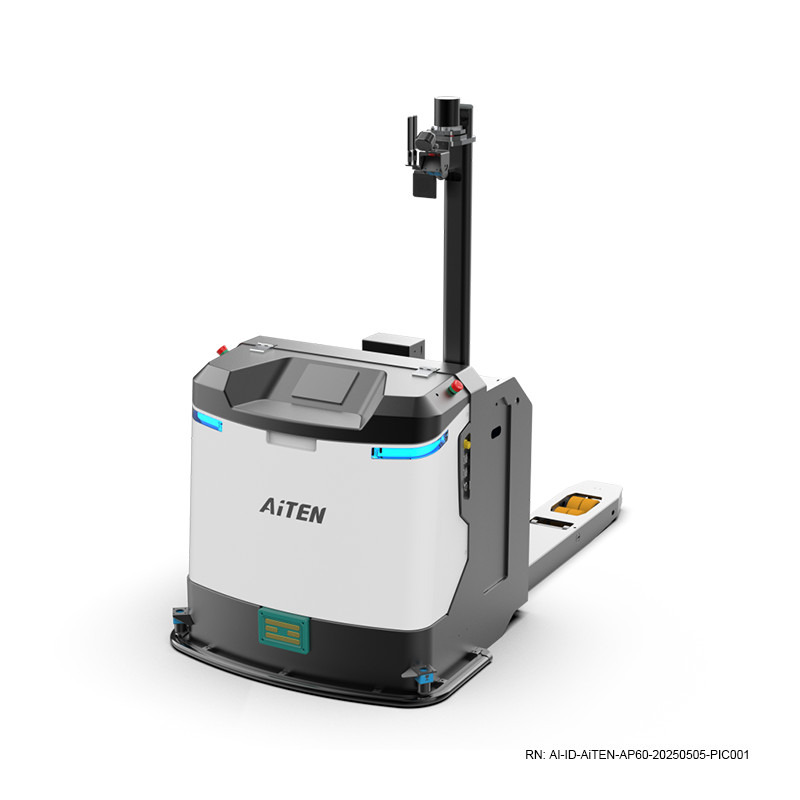

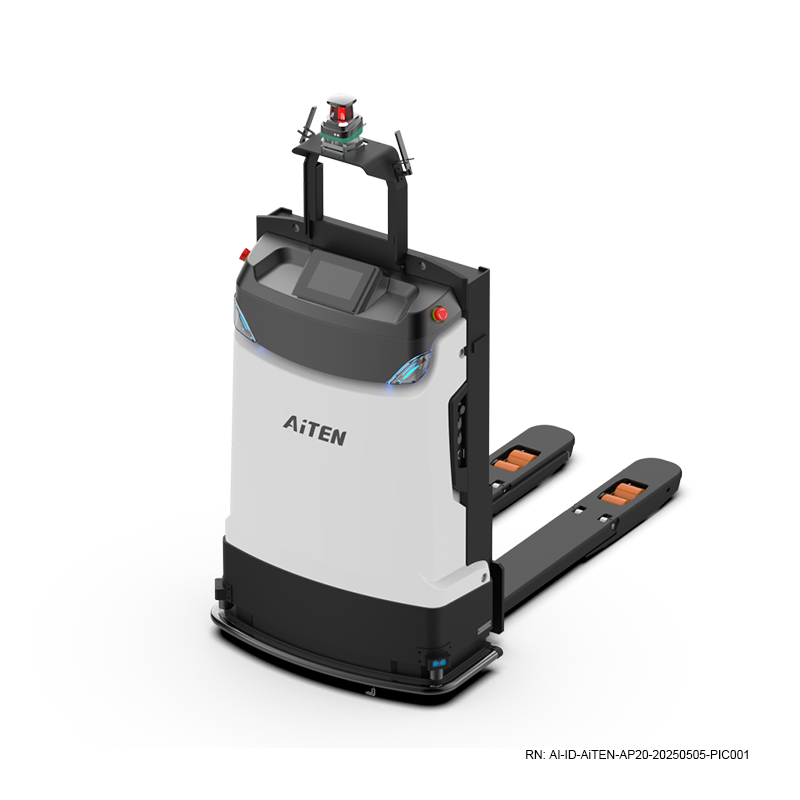

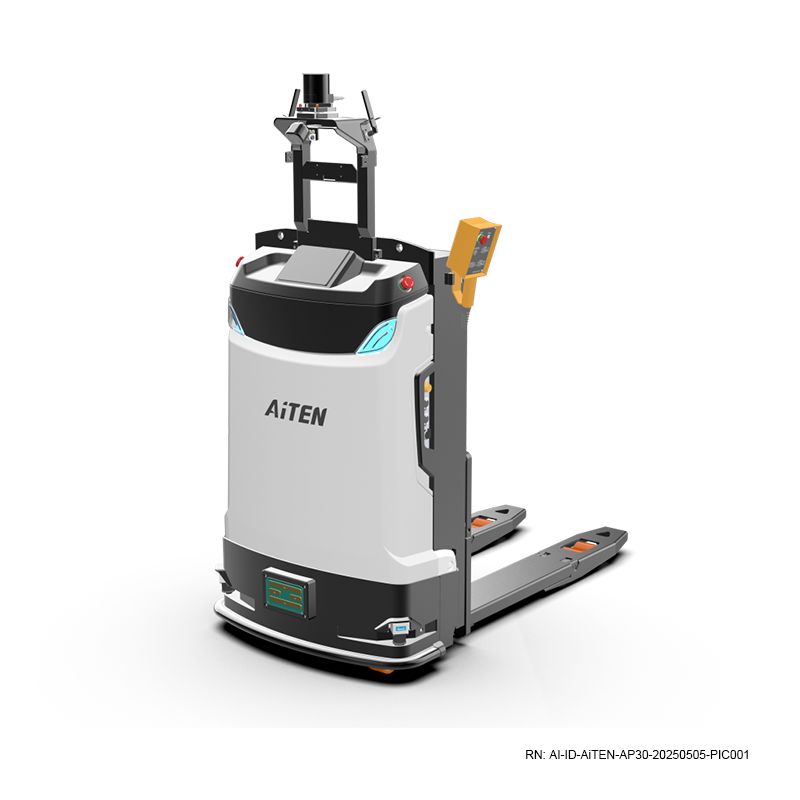

AiTEN AP Series – Autonomous Pallet Stackers (AP20 / AP30 / AP60)
Couldn't load pickup availability
*** This product is currently unavailable for direct purchase. Please contact us to inquire about availability and pricing. ***
The AiTEN AP Series includes three models—AP20, AP30, and AP60—designed for highly flexible and intelligent pallet handling in industrial environments. With payload capacities ranging from 530kg to 6000kg, this series is equipped with advanced SLAM navigation, real-time obstacle detection, multi-sensor fusion, and intelligent fleet management capabilities.
Whether you need light-duty transport, mid-range stacking, or heavy-payload logistics, the AP Series delivers precision, safety, and automation at scale.
| Feature | AP20 | AP30 | AP60 |
|---|---|---|---|
| Load Capacity | 530 kg | 530 kg | 6000 kg |
| Lift Height | 210 mm | 210 mm | 270 mm |
| Navigation Technology | Visual SLAM + QR + Lidar | Visual SLAM + QR + Lidar | Visual SLAM + QR + Lidar |
| Positioning Accuracy | ±10 mm | ±10 mm | ±10 mm |
| Runtime | 20 hours | 20 hours | 20 hours |
| Charging Time | 2 hours (auto/manual) | 2 hours (auto/manual) | 2 hours (auto/manual) |
| Dimensions (L×W×H) | 1700×850×1930 mm | 1795×880×1930 mm | 2250×980×2020 mm |
| Unit Weight | 530 kg | 530 kg | 1430 kg |
| Recommended Application | Light-duty movement | Medium-duty stacking | Heavy pallet transport |
Key Features
-
Advanced fusion navigation: Vision + Lidar + QR
-
High-precision ±10 mm positioning
-
Real-time 360° obstacle detection
-
Intelligent dispatch and task monitoring
-
Optional pallet detection & posture recognition
-
Fast deployment with minimal site modifications
-
Multi-robot scheduling with low maintenance cost
