AiTEN APx20 High-Capacity Electric Pallet Stacker – 2000kg Load, 1315mm Lift
Couldn't load pickup availability
*** This product is currently unavailable for direct purchase. Please contact us to inquire about availability and pricing. ***

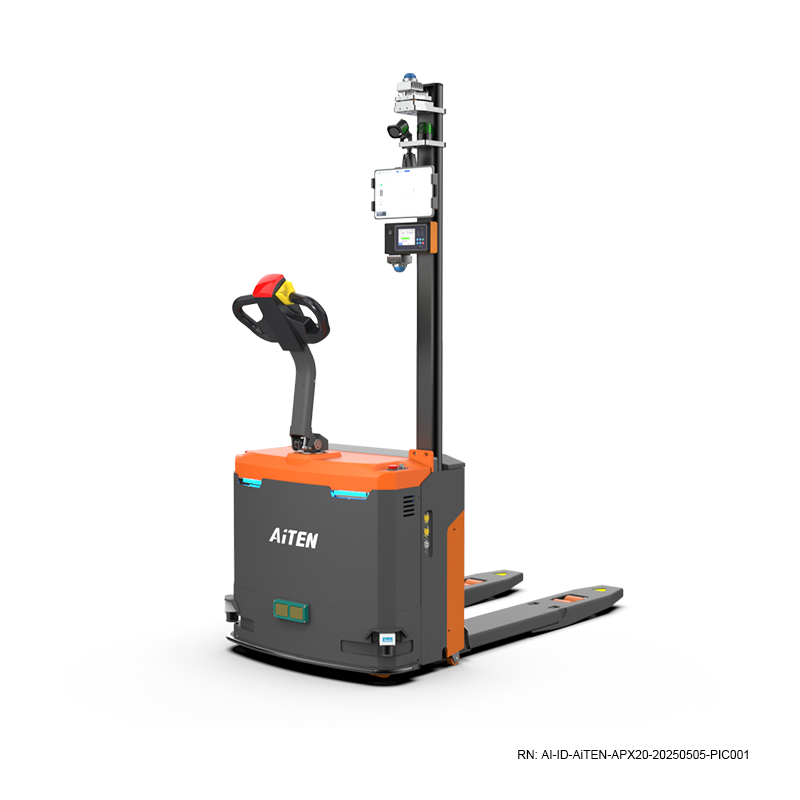

The AiTEN APx20 is a premium autonomous pallet stacker engineered for high-load logistics automation. With a powerful 2000kg payload capacity and a maximum lift height of 1315mm, it handles double-deck pallets with ease—making it ideal for high-turnover warehouses and manufacturing plants.
Equipped with visual + SLAM + QR code multi-modal navigation and high-precision positioning (±10mm), APx20 offers seamless compatibility with standard pallet sizes. It features a narrow-body design for flexible operation in dense storage areas and includes full safety protection: 360° obstacle avoidance, emergency stop, bumper edge, and visual/audio alarms.
With support for intelligent fleet scheduling, auto-charging, and deep pallet compatibility, the APx20 is a cornerstone of smart warehouse transformation—maximizing productivity and ROI.
| Feature | Value |
|---|---|
| Payload Capacity | 2000 kg |
| Fork Min Height | 200 mm |
| Max Lifting Height | 1315 mm |
| Positioning Accuracy | ±10 mm |
| Navigation System | SLAM + Visual + QR code |
| Dimensions (L×W×H) | 1320 × 850 × 1900 mm |
| Battery | 48V / 60Ah lithium |
| Operating Time | 6–8 hours per full charge |
| Charging Mode | Manual / Automatic |
| Compatible Pallets | Euro / Customizable |
| Comms Protocol | Wi-Fi / 4G / CAN |
| Min Aisle Width | 1.8 m |
| Max Climbing Slope | ≤5° |
| Operating Environment | –10°C to 45°C |
| Safety Features | Radar, Bumper, E-Stop, Alarms |
