AiTEN AP20 Autonomous Pallet Stacker – 2000kg Load, 210mm Lift
Couldn't load pickup availability
*** This product is currently unavailable for direct purchase. Please contact us to inquire about availability and pricing. ***

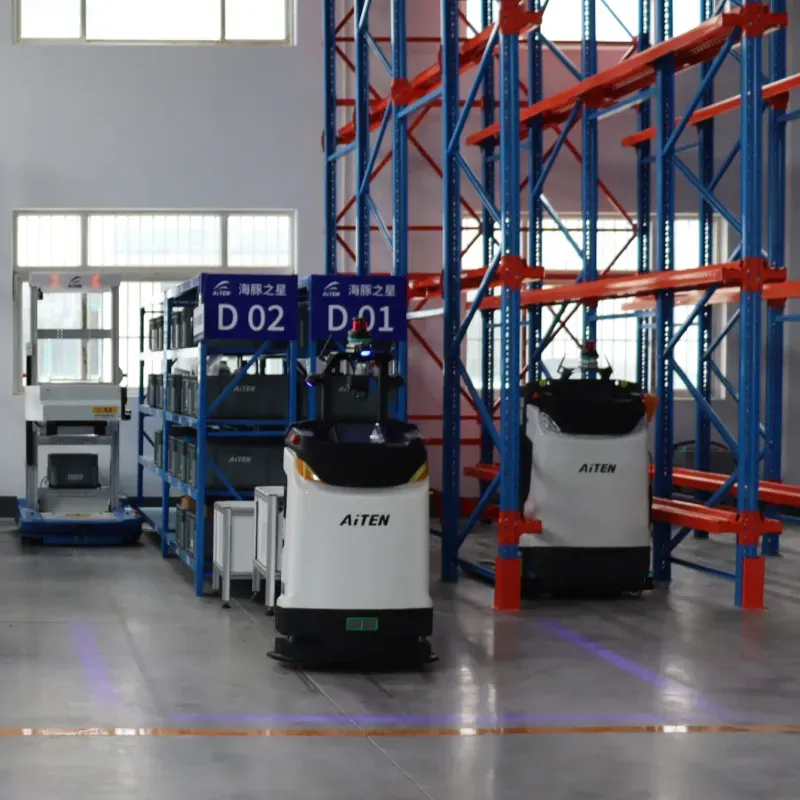

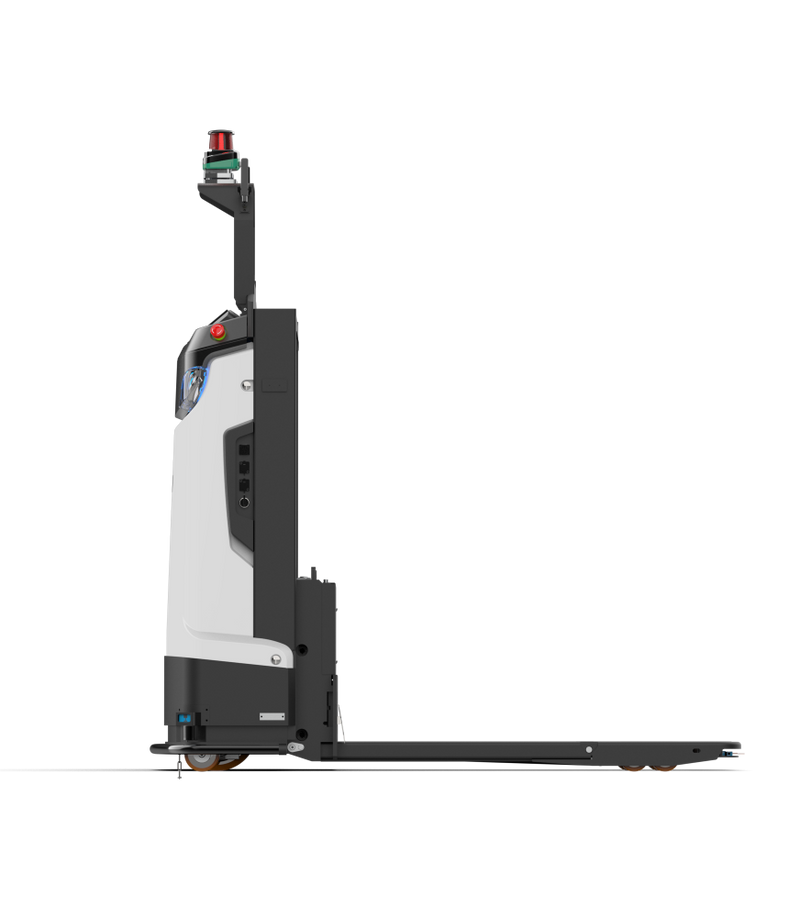

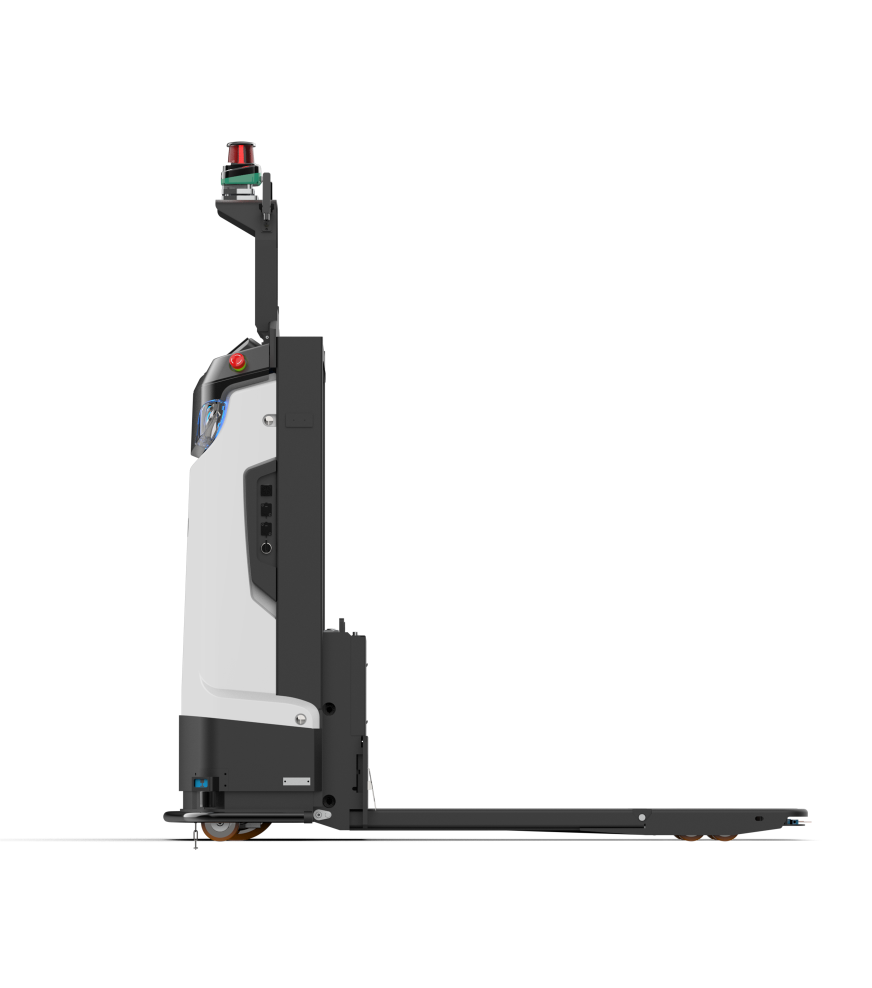

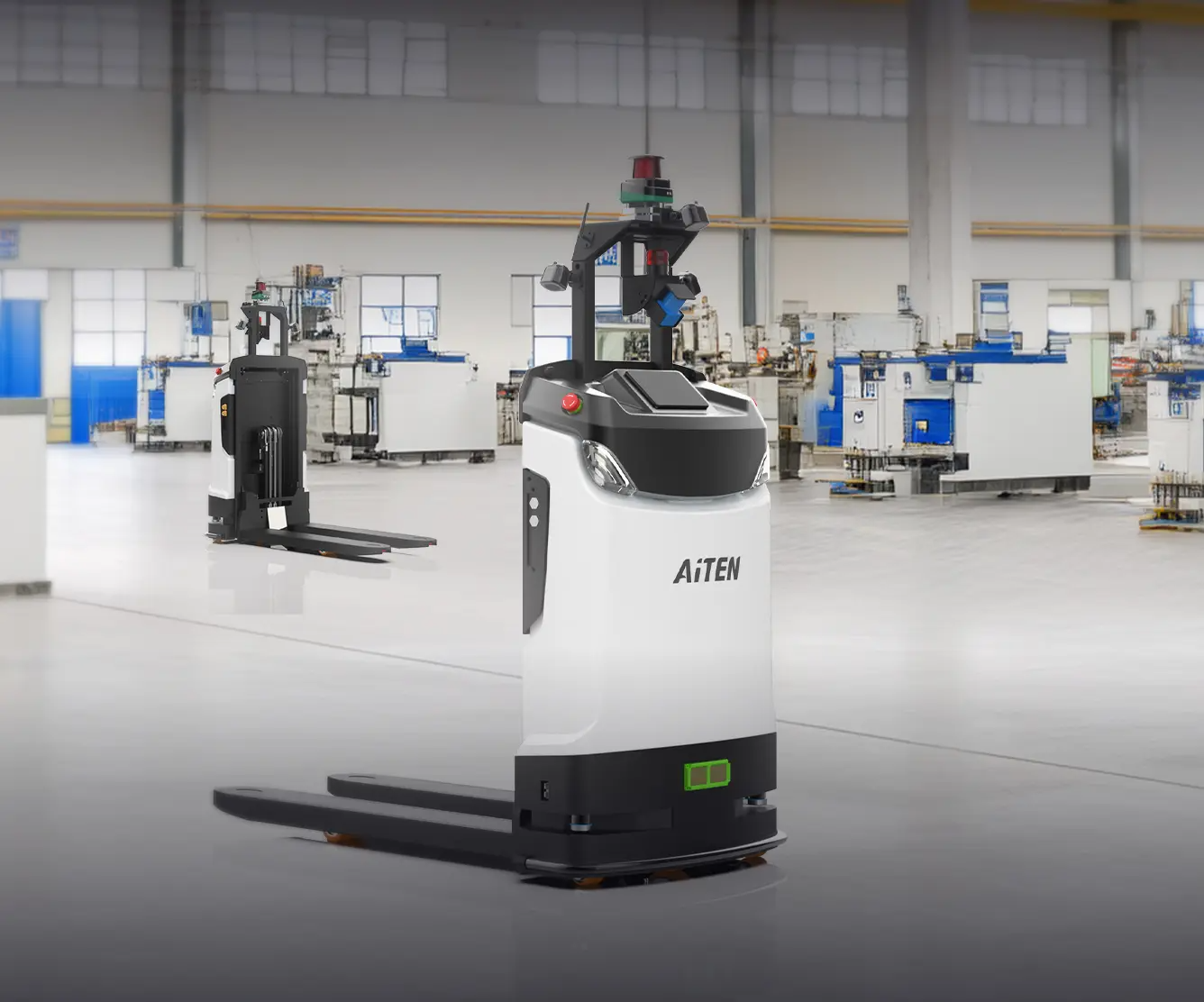

The AiTEN AP20 is a compact, high-performance autonomous pallet stacker designed to streamline material handling in smart factories, logistics hubs, and warehouse environments. With a rated capacity of 2000kg and a fork height of 210mm, it’s ideal for horizontal pallet movement and short-range stacking tasks.
Equipped with multi-sensor fusion navigation (Visual + QR + Laser), ±10mm high-precision positioning, and a minimal turning radius, the AP20 ensures reliable movement in tight aisles and dynamic settings. Key features include:
-
24/7 intelligent dispatching & auto-charging
-
360° obstacle avoidance with LIDAR
-
Emergency stop, bumpers, and audio/visual alarms
-
Custom pallet compatibility & efficient space utilization
-
Fast full charge within 2 hours, supporting 20 hours runtime
This model empowers businesses to lower labor costs, increase operational efficiency, and accelerate return on investment with <15-month ROI cycle.
Key Parameter | Specification |
---|---|
Load Capacity | 2000 kg |
Fork Height (min/max) | 210 mm |
Self-Weight | 530 kg |
Navigation | Visual SLAM + QR + Marker |
Positioning Accuracy | ±10 mm |
Dimensions (L×W×H) | 1700 × 850 × 2000 mm |
Turning Radius | ≤1.8 m |
Battery Capacity | 48V / 60Ah lithium |
Charging Mode | Manual & Automatic |
Runtime | ~20 hours |
Communication | Wi-Fi / 4G / CAN |
Compatible Pallets | Euro & custom pallets |
Max Slope | ≤5° |
Safety Features | LIDAR, bumper, e-stop, sound & light alerts |
